Part Number : Sanyo TT2206
( TT2206 == Sanyo 2SС5793 )
Package : TT2206 / TO-3P
Manufacturer : SANYO

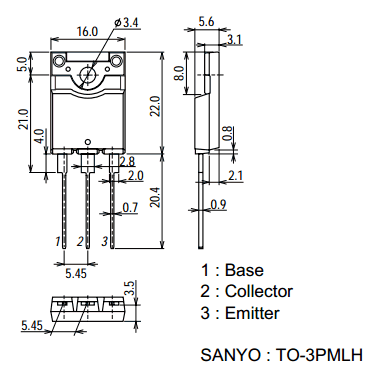

Pinout :
Description

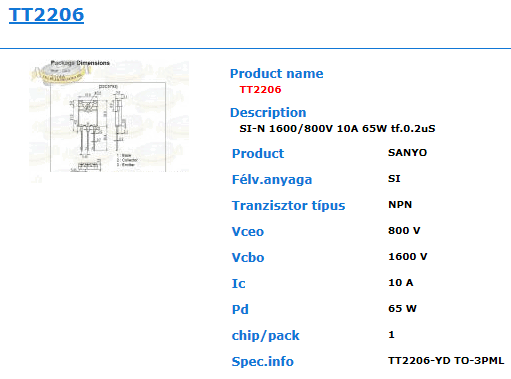

TT2206 Datasheet : NPN Ultrahigh-Definition CRT Display Horizontal Deflection Output
Features : I(c) : 10A, V(cbo) : 1600V
1. High speed.
2. High breakdown voltage (Vcbo=1600V, Vceo=800V, Ic=10A, Pc=65W ).
3. High reliability (Adoption of HVP process).
4. Adoption of MBIT process.
TT2206 Datasheet
The equivalent circuit of TT2206 is 2SС5793, TT2202, JL6920, 2SC5446.
TT2206 Reference
Datasheet PDF Download
Toshiba 2SC5446 , Sanyo TT2202 , Sanyo 2SC5793
